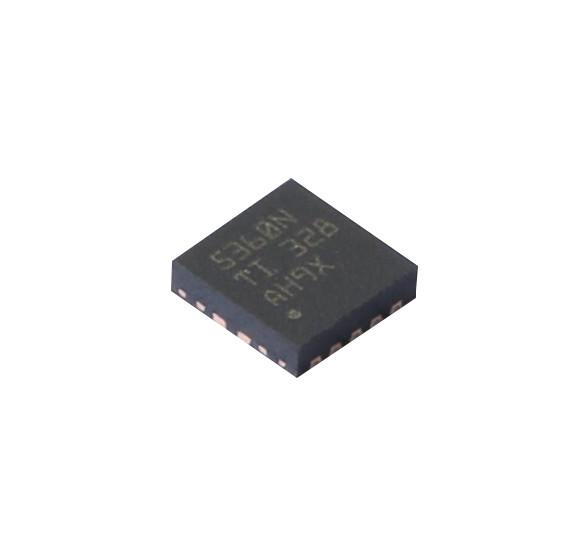

LM53600NQDSXRQ1 IC Electronic Components Anti -voltage DC converter
Product description
rated over
a −40°C to +105°C temperature
Part number LM53600NQDSXRQ1 is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on LM53600NQDSXRQ1 detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.
Product details/Parameters
| Number of output interfaces | 1 |
| The output voltage | 3.3 V |
| Output current | 650 mA |
| Quiescent Current | 23.0 µA |
| Adjust the output number | 1 |
| On-off level | 2.1 MHz |
| Topology | Buck |
| Switch current | 1.65 A |
| Input voltage (MAX) | 36 V |
| Input voltage (min) | 3.55 V |
| Output voltage (min) | 3.3 V |
| Output current (MAX) | 0.65 A |
| Work temperature (MAX) | 150 ℃ |
| Work temperature (min) | -40 ℃ |
| Input voltage | 36 V |
| Installation method | Surface Mount |
| Pins | 10 |
| Encapsulate | WFDFN-10 |
| Part of the recommended inventory list |
| LM536035QPWPRQ1 | TI | HTSSOP-16 |
| LM53601AQDSXTQ1 | TI | WSON10 |
| LM536023QPWPTQ1 | TI | HTSSOP-16 |
| LM53601MQDSXTQ1 | TI | WFDFN-10 |
| LM53601NQDSXRQ1 | TI | WSON10 |
| LM536033QPWPTQ1 | TI | HTSSOP-16 |
| LM53600LQDSXRQ1 | TI | WSON-10 |
| LM53600LQDSXTQ1 | TI | WSON-10 |
| LM53602AQPWPTQ1 | TI | HTSSOP-16 |
| LM53603AMPWPT | TI | HTSSOP-16 |
| LM53601AQDSXRQ1 | TI | WSON10 |
| LM536035QPWPTQ1 | TI | HTSSOP-16 |
| LM53600MQDSXTQ1 | TI | WSON-10 |
| LM536025QPWPTQ1 | TI | HTSSOP-16 |
| LM536015QDSXTQ1 | TI | WSON10 |
he VNS14NV04P-E is monthic device made
using STMicroelectronics™ VIPower™ M0
Technology, intended for replacement of standard
Power MOSFETs in DC to 50 KHz applications.
LM53600-Q1 and LM53601-Q1 Synchronous antihypertensive regulatory device are optimized for car applications, and can provide 5V and 3.3V output voltage or adjustable output voltage. LM53600-Q1 supports a load current of up to 650mA, while LM53601-Q1 supports a load current of up to 1000mA.
advantages
1. Parts source determine price, The source of our parts is very initial.
2. Price can be negotiable based on quantity; delivery terms;
3. We will try to help customers to reduce freight charge.
4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
FAQ
Q1: What company do we belong to? A1: We are a trader and agent.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 15-20 days delivery time.
Q3: How to order?
A3: Please mail your order or request to us, and tell us the following information: shipping details, including company name, address, person, phone number, quantity.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
